Crosstales.Radio.RadioPlayer Class Reference

Player for a radio station. More...

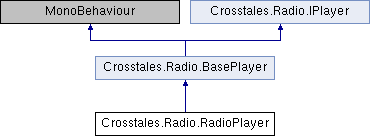

Inheritance diagram for Crosstales.Radio.RadioPlayer:

Public Member Functions
override void	Play ()
	Plays the radio-station. More...
override void	Stop ()
	Stops the playback of the radio-station. More...
override void	Restart (float invokeDelay=Constants.INVOKE_DELAY)
	Restarts the playback of the radio-station. More...
virtual string	ToShortString ()
void	Load ()
	Loads the RadioPlayer. More...
void	Save ()
	Saves the RadioPlayer. More...
override void	Mute ()
	Mute the playback of the record. More...
override void	UnMute ()
	Unmute the playback of the record. More...
override string	ToString ()
virtual void	PlayInEditor (int channels=2, int sampleRate=44100)
	Plays the radio-station (Editor only). More...
Public Member Functions inherited from Crosstales.Radio.BasePlayer
virtual void	PlayOrStop ()
	Plays or stops the radio-station. More...
virtual void	MuteOrUnMute ()
	Mute or unmute the playback of the record. More...

Public Attributes
override bool	isPlayback => playback
override bool	isAudioPlaying => playback && !isBuffering
override bool	isBuffering => !bufferAvailable
override RecordInfo	RecordInfo => recordInfo
override RecordInfo	NextRecordInfo => nextRecordInfo
override float	NextRecordDelay => nextRecordDelay
override long	CurrentBufferSize => ms != null ? ms.Length - ms.Position : 0
override long	CurrentDownloadSpeed => ms != null && PlayTime > 0f ? (long)(ms.Length / PlayTime) : 0
override int	Channels => station?.Channels ?? 0
override int	SampleRate => station?.SampleRate ?? 0
PlaybackStartEvent	OnPlaybackStarted
BufferingStartEvent	OnBufferingStarted
BufferingEndEvent	OnBufferingEnded
AudioStartEvent	OnAudioStarted
AudioEndEvent	OnAudioEnded
PlaybackEndEvent	OnPlaybackEnded
RecordChangeEvent	OnRecordChanged
ErrorEvent	OnError

Protected Member Functions
override void	onPlaybackStart (RadioStation _station)
override void	onPlaybackEnd (RadioStation _station)
override void	onBufferingStart (RadioStation _station)
override void	onBufferingEnd (RadioStation _station)
override void	onAudioStart (RadioStation _station)
override void	onAudioEnd (RadioStation _station)
override void	onErrorInfo (RadioStation _station, string info)
override void	onRecordChange (RadioStation _station, RecordInfo newRecord)
override void	onRecordPlayTimeUpdate (RadioStation _station, RecordInfo record, float playtime)
override void	onNextRecordChange (RadioStation _station, RecordInfo nextRecord, float _delay)
override void	onNextRecordDelayUpdate (RadioStation _station, RecordInfo nextRecord, float _delay)
Protected Member Functions inherited from Crosstales.Radio.BasePlayer
virtual void	onBufferingProgressUpdate (RadioStation station, float progress)
virtual void	onAudioPlayTimeUpdate (RadioStation station, float _playtime)

Protected Attributes
NAudio.Wave.Mp3FileReader	nAudioReader
bool	stopped = true
bool	bufferAvailable
bool	playback
NVorbis.VorbisReader	nVorbisReader
NLayer.MpegFile	nLayerReader
override PlaybackStartEvent	onPlaybackStarted => OnPlaybackStarted
override PlaybackEndEvent	onPlaybackEnded => OnPlaybackEnded
override RecordChangeEvent	onRecordChanged => OnRecordChanged
override BufferingStartEvent	onBufferingStarted => OnBufferingStarted
override BufferingEndEvent	onBufferingEnded => OnBufferingEnded
override AudioStartEvent	onAudioStarted => OnAudioStarted
override AudioEndEvent	onAudioEnded => OnAudioEnded
override ErrorEvent	onError => OnError

Properties
static RadioPlayer	Instance [get]
	Returns the singleton instance of this class. More...
override RadioStation	Station [get, set]
bool	PlayOnStart [get, set]
	Play the RadioPlayer on start on/off. More...
float	Delay [get, set]
	Delay in seconds until the RadioPlayer starts playing. More...
override bool	HandleFocus [get, set]
override int?	CacheStreamSize [get, set]
override bool	LegacyMode [get, set]
override bool	CaptureDataStream [get, set]
override bool	SkipPreBuffering [get, set]
override AudioSource	Source [get, protected set]
override AudioCodec	Codec [get, protected set]
override float	PlayTime [get, protected set]
override float	BufferProgress [get, protected set]
override float	RecordPlayTime [get, protected set]
override Crosstales.Common.Util.MemoryCacheStream	DataStream [get, protected set]
override float?	Volume [get, set]
override float?	Pitch [get, set]
override float?	StereoPan [get, set]
override bool	isMuted [get, set]
Properties inherited from Crosstales.Radio.BasePlayer
static int?	playCounter [get, set]
static int?	audioCounter [get, set]
abstract PlaybackStartEvent	onPlaybackStarted [get]
abstract PlaybackEndEvent	onPlaybackEnded [get]
abstract BufferingStartEvent	onBufferingStarted [get]
abstract BufferingEndEvent	onBufferingEnded [get]
abstract AudioStartEvent	onAudioStarted [get]
abstract AudioEndEvent	onAudioEnded [get]
abstract RecordChangeEvent	onRecordChanged [get]
abstract ErrorEvent	onError [get]
abstract RadioStation	Station [get, set]
abstract bool	HandleFocus [get, set]
abstract int	CacheStreamSize [get, set]
abstract bool	LegacyMode [get, set]
abstract bool	CaptureDataStream [get, set]
abstract bool	SkipPreBuffering [get, set]
abstract AudioSource	Source [get, protected set]
abstract AudioCodec	Codec [get, protected set]
abstract float	PlayTime [get, protected set]
abstract float	BufferProgress [get, protected set]
abstract bool	isBuffering [get]
abstract long	CurrentBufferSize [get]
abstract bool	isPlayback [get]
abstract bool	isAudioPlaying [get]
abstract float	RecordPlayTime [get, protected set]
abstract RecordInfo	RecordInfo [get]
abstract RecordInfo	NextRecordInfo [get]
abstract float	NextRecordDelay [get]
abstract long	CurrentDownloadSpeed [get]
abstract Crosstales.Common.Util.MemoryCacheStream	DataStream [get, protected set]
abstract int	Channels [get]
abstract int	SampleRate [get]
abstract float	Volume [get, set]
abstract float	Pitch [get, set]
abstract float	StereoPan [get, set]
abstract bool	isMuted [get, set]
Properties inherited from Crosstales.Radio.IPlayer
RadioStation	Station [get, set]
	Current RadioStation of this player. More...
bool	HandleFocus [get, set]
	Starts and stops the RadioPlayer depending on the focus and running state. More...
int	CacheStreamSize [get, set]
	Size of the cache stream in bytes. More...
bool	LegacyMode [get, set]
	Enable or disable legacy mode. Legacy mode disables all record information, but is more stable. More...
bool	CaptureDataStream [get, set]
	Capture the encoded PCM-stream from this player. More...
bool	SkipPreBuffering [get, set]
	Enable or disable skipping of the pre-buffering. Skip pre-buffering allows for faster playback, but is less resilient. More...
AudioSource	Source [get]
	Returns the AudioSource of for this player. More...
AudioCodec	Codec [get]
	Returns the codec of for this player. More...
float	PlayTime [get]
	Returns the current playtime of this player. More...
float	BufferProgress [get]
	Returns the current buffer progress in percent. More...
bool	isBuffering [get]
	Is this player buffering? More...
long	CurrentBufferSize [get]
	Returns the size of the current buffer in bytes. More...
bool	isPlayback [get]
	Is this player in playback-mode? More...
bool	isAudioPlaying [get]
	Is this player playing audio? More...
float	RecordPlayTime [get]
	Returns the playtime of the current audio record. More...
RecordInfo	RecordInfo [get]
	Returns the information about the current audio record. More...
RecordInfo	NextRecordInfo [get]
	Returns the information about the next audio record. This information is updated a few seconds before a new record starts. More...
float	NextRecordDelay [get]
	Returns the current delay in seconds until the next audio record starts. More...
long	CurrentDownloadSpeed [get]
	Returns the current download speed in Bytes per second. More...
Crosstales.Common.Util.MemoryCacheStream	DataStream [get]
	Returns the encoded PCM-stream from this player. More...
int	Channels [get]
	Current audio channels of the current station. More...
int	SampleRate [get]
	Current audio sample rate of the current station. More...
float	Volume [get, set]
	Current volume of this player. More...
float	Pitch [get, set]
	Current pitch of this player. More...
float	StereoPan [get, set]
	Current stereo pan of this player. More...
bool	isMuted [get, set]
	Is this player muted? More...

Additional Inherited Members
Static Public Attributes inherited from Crosstales.Radio.BasePlayer
static bool	isAnyPlayback => playCounter > 0
	Checks if ANY RadioPlayer is in playback-mode on this system. More...
static bool	isAnyAudioPlaying => audioCounter > 0
	Checks if ANY RadioPlayer playing audio on this system. More...
Events inherited from Crosstales.Radio.BasePlayer
PlaybackStart	OnPlaybackStart
	An event triggered whenever the playback starts. More...
PlaybackEnd	OnPlaybackEnd
	An event triggered whenever the playback ends. More...
BufferingStart	OnBufferingStart
	An event triggered whenever the buffering starts. More...
BufferingEnd	OnBufferingEnd
	An event triggered whenever the buffering ends. More...
BufferingProgressUpdate	OnBufferingProgressUpdate
	An event triggered whenever the buffering progress changes. More...
AudioStart	OnAudioStart
	An event triggered whenever the audio starts. More...
AudioEnd	OnAudioEnd
	An event triggered whenever the audio ends. More...
AudioPlayTimeUpdate	OnAudioPlayTimeUpdate
	An event triggered whenever the audio playtime changes. More...
RecordChange	OnRecordChange
	An event triggered whenever an audio record changes. More...
RecordPlayTimeUpdate	OnRecordPlayTimeUpdate
	An event triggered whenever the audio record playtime changes. More...
NextRecordChange	OnNextRecordChange
	An event triggered whenever the next record information is available. More...
NextRecordDelayUpdate	OnNextRecordDelayUpdate
	An event triggered whenever the next record delay time changes. More...
ErrorInfo	OnErrorInfo
	An event triggered whenever an error occurs. More...

Detailed Description

Player for a radio station.

Member Function Documentation

Load()

void Crosstales.Radio.RadioPlayer.Load

(

)

Loads the RadioPlayer.

Mute()

override void Crosstales.Radio.RadioPlayer.Mute ( )

virtual

Mute the playback of the record.

Implements Crosstales.Radio.BasePlayer.

Play()

override void Crosstales.Radio.RadioPlayer.Play ( )

virtual

Plays the radio-station.

Implements Crosstales.Radio.BasePlayer.

PlayInEditor()

virtual void Crosstales.Radio.RadioPlayer.PlayInEditor ( int  channels = 2, int  sampleRate = 44100  )

virtual

Plays the radio-station (Editor only).

Parameters

channels	Number of audio channels (default: 2, optional)
sampleRate	Sample rate of the audio (default: 44100, optional)

Restart()

override void Crosstales.Radio.RadioPlayer.Restart ( float  invokeDelay = Constants.INVOKE_DELAY )

virtual

Restarts the playback of the radio-station.

Parameters

invokeDelay

Delay for the restart (default: 0.4, optional)

Implements Crosstales.Radio.BasePlayer.

Save()

void Crosstales.Radio.RadioPlayer.Save

(

)

Saves the RadioPlayer.

Stop()

override void Crosstales.Radio.RadioPlayer.Stop ( )

virtual

Stops the playback of the radio-station.

Implements Crosstales.Radio.BasePlayer.

UnMute()

override void Crosstales.Radio.RadioPlayer.UnMute ( )

virtual

Unmute the playback of the record.

Implements Crosstales.Radio.BasePlayer.

Property Documentation

Delay

float Crosstales.Radio.RadioPlayer.Delay

getset

Delay in seconds until the RadioPlayer starts playing.

Instance

RadioPlayer Crosstales.Radio.RadioPlayer.Instance

staticget

Returns the singleton instance of this class.

Returns

Singleton instance of this class.

PlayOnStart

bool Crosstales.Radio.RadioPlayer.PlayOnStart

getset

Play the RadioPlayer on start on/off.

---

The documentation for this class was generated from the following file:

• C:/Users/slaub/Unity/assets/Radio/RadioPro/Assets/Plugins/crosstales/Radio/Scripts/RadioPlayer.cs
